PU HOSE

“Strength Meets Flexibility”

PU HOSE

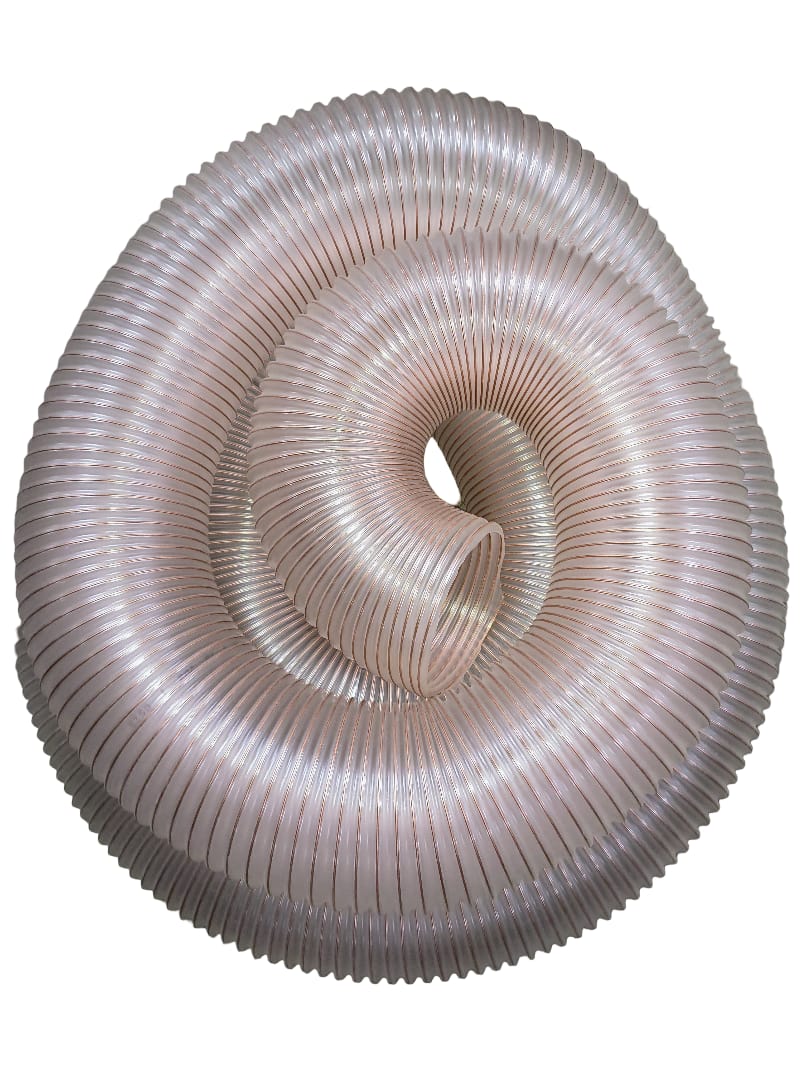

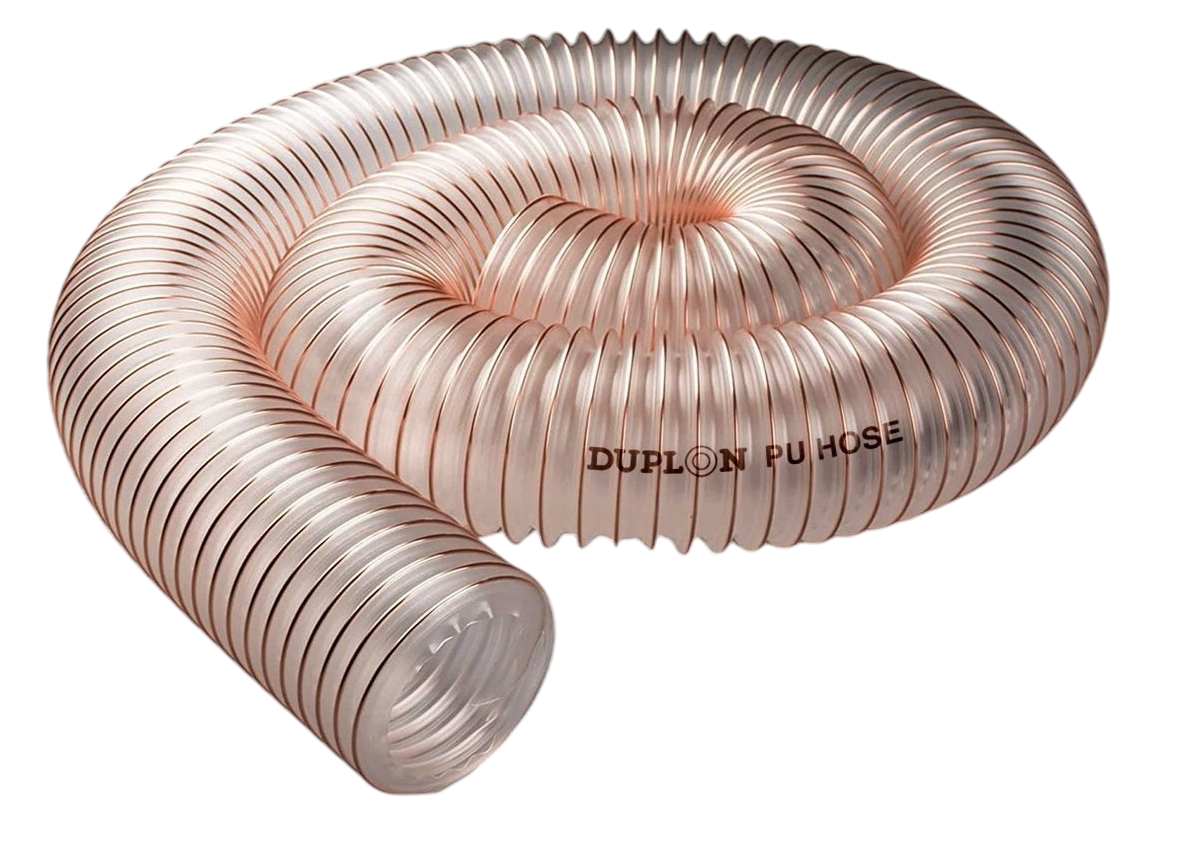

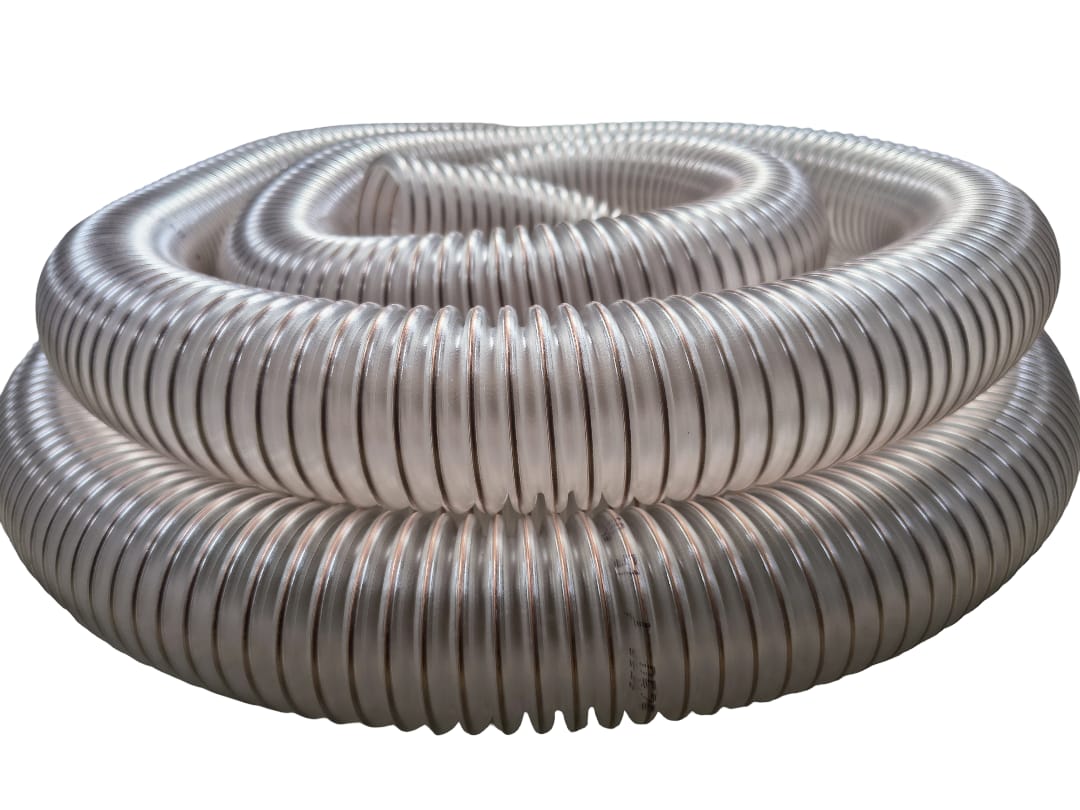

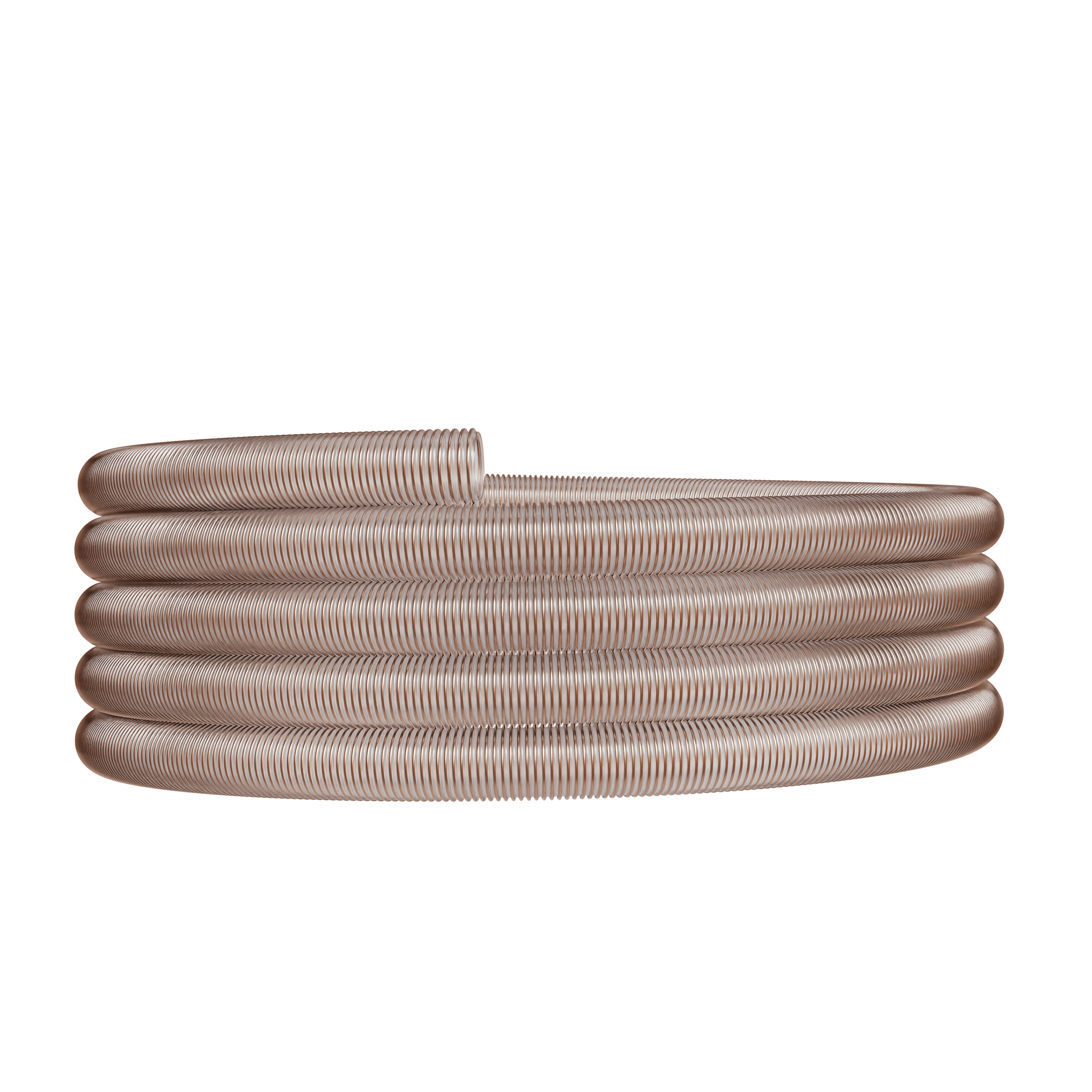

Duplon Polyurethane Hose offers exceptional flexibility, durability, and light weight — making it ideal for demanding industrial applications. Its superior resistance to abrasion and high temperature performance makes it the preferred choice for industries that convey abrasive materials under challenging conditions.

Composition: Made from premium polyurethane with embedded copper-coated spring steel wire for added strength and durability.

0.4 mm Wall Thickness

Key Features

Very light and extremely flexible
Good tensile strength
Ultimate elongation
Good resistance to UV and Ozone
Free of softeners, halogen and cadmium free.
Small bending radius
Kink-proof
Excellent compressibility 3:1
Capable of electrostatic discharge by grounding the spiral

Applications

Duplon PU hose 0.4mm Thickness is ideal for waste (dust) collection system, removal of cotton dust particles during bale processing, waste removal during combing process, also used in ring frame and compact spinning, comber and speed frame, carding, draw frames, also in blow room for transport of light materials, O.H.T.C system and humidification systems) Ceramic ( during various stages of production such as raw material handling, dust extraction and collection, spray dyers and processing equipment and tile pressing & gazing etc.), Woodworking (Efficient suction of sawdust, wood chips & shavings from machinery, removal of larger wood waste during cutting, edge benders, panel saws & sanders, planers and jointer, and centralized vacuum system etc.) and conveying of air, fumes, dust and light materials in packaging, plastic processing, food, and pharmaceutical sectors.

Available sizes

51mm to 305mm I. D.

PRESSURE

Pressure (Bar) 0.09 to 0.70
Vacuum (Bar) 0.01 to 0.24

TEMPERATURE RANGE

40 °C approx. to +90 °C approx.
Short time to +125 °C approx.

Colour

Transparent with copper coated steel wire helix

GET A QUOTE

Specifications

Size (Inch)	ID (mm)	OD (mm)	Wall Thickness (mm)	Pressure (Bar)	Vacuum (Bar)	Bending Radius (mm)	Length (Mtrs)
2	51	59	0.4	0.70	0.240	59	15
2¼	60	68	0.4	0.56	0.210	68	15
2½	63	71	0.4	0.55	0.180	71	15
3	76	84	0.4	0.47	0.130	84	15
3¼	80	88	0.4	0.43	0.120	88	15
4	102	110	0.4	0.35	0.080	110	15
5	127	135	0.4	0.28	0.060	135	15
6	152	160	0.4	0.17	0.050	160	15
8	203	211	0.4	0.13	0.030	211	15
10	254	262	0.4	0.10	0.015	262	15
12	305	313	0.4	0.09	0.010	313	15

0.6 mm Wall Thickness

Key Features

Very light and flexible
Good tensile and abrasion resistance
Ultimate elongation
Good resistance to UV and Ozone
Free of softeners, halogen and cadmium free.
Small bending radius
Kink-proof
Excellent compressibility 3:1
Capable of electrostatic discharge by grounding the spiral
Flame retardant

Applications

Duplon PU hose 0.6mm Thickness is best for light to moderate-duty suction and conveying where flexibility is needed but material being conveyed still has some abrasiveness, such as dust extraction in woodworking, textile, and paper industries, conveying light plastic pellets, fibers, fluff, and granules, Industrial vacuum cleaners (light-duty use), Plastic processing and recycling, De-dusting systems with low to medium vacuum pressures.

Available sizes

25mm to 305mm I. D.

PRESSURE

Pressure (Bar) 0.117 to 1.600
Vacuum (Bar) 0.013 to 0.360

TEMPERATURE RANGE

40 °C approx. to +90 °C approx
Short time to +125 °C approx.

Colour

Transparent with copper coated steel wire helix.

PLACE ORDER

Specifications

Size (Inch)	ID (mm)	OD (mm)	Wall Thickness (mm)	Pressure (Bar)	Vacuum (Bar)	Bending Radius (mm)	Length (Mtrs)
1	25	32	0.6	1.600	0.360	32	15
1½	40	48	0.6	1.020	0.335	48	15
2	51	59	0.6	0.910	0.312	59	15
3	76	84	0.6	0.611	0.169	84	15
4	102	110	0.6	0.455	0.104	110	15
10	254	262	0.6	0.130	0.020	262	15
12	305	313	0.6	0.117	0.013	313	15

0.9 mm Wall Thickness (Food Grade)

Key Features

Food grade material
Seamless inner surface
High resistance to wear and tear- ideal for abrasive materials
Microbe and Hydrolysis resistant
Kink Resistance
Chemical Resistance
Optimized flow property
High tensile strength
Capable of electrostatic discharge by grounding the spiral
Electrical & surface resistance ? 1010 ?

Applications

Duplon PU hose 0.9mm Thickness Food Grade Hose widely used in De-dusting and suction plants, Food and pharma industries, Textile industries, Plastics and processing, Wood working and carpentry, Paper Manufacturing and Printing, Industrial vacuum cleaners and many more where conveying of abrasive solids such as dust, granules, powder, fiber and chips is required in both light and medium operations.

Available sizes

51mm to 102mm I. D.

PRESSURE

Pressure (Bar) 0.685 to 1.37
Vacuum (Bar) 0.115 to 0.365

TEMPERATURE RANGE

40 °C approx. to +90 °C approx.
Short time to +125 °C approx.

Colour

Transparent with copper coated steel wire helix

PLACE ORDER

Specifications

Size (Inch)	ID (mm)	OD (mm)	Wall Thickness (mm)	Pressure (Bar)	Vacuum (Bar)	Bending Radius (mm)	Length (Mtrs)
2	51	59	0.9	1.370	0.365	90	15
2½	63	70	0.9	1.050	0.205	113	15
3	76	84	0.9	0.920	0.195	155	15
4	102	110	0.9	0.685	0.115	204	15

1.5 mm Wall Thickness (Food Grade)

Key Features

Food grade material
Smooth inner surface
Highly abrasion resistance
High Strength & Durability
High tensile strength & tear Resistance
Kink – Proof
Optimized flow property
Small bending Radius
Ability to maintain shape under pressure
Good Resistance to chemicals
Good resistance to UV and Ozone
Gas & liquid tight
Electrical & surface resistance ? 1010 ?
Capable of electrostatic discharge by grounding the spiral

Applications

Duplon PU hose 1.5mm Thickness Food Grade Hose widely used in suction & conveying of high flow rates of hot & abrasive solids such as powder, chips & granules. Used in granule conveying systems, industrial vacuum cleaners, printing machines, blowers & compressors.
