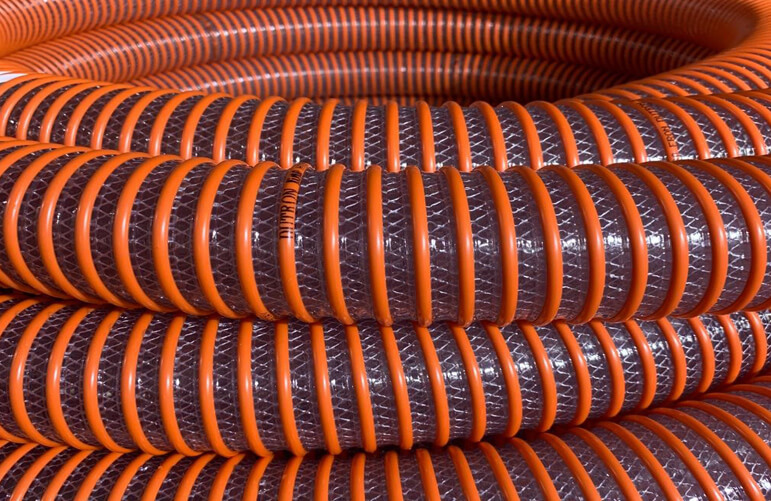

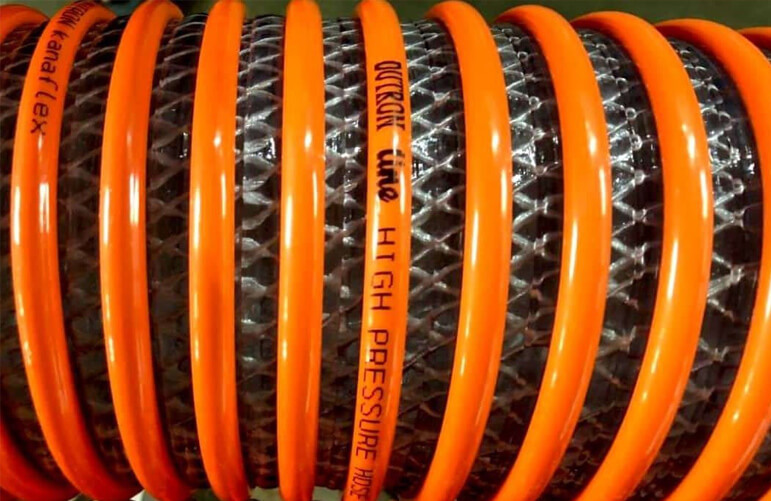

“High Pressure Water Suction and Delivery Hose”

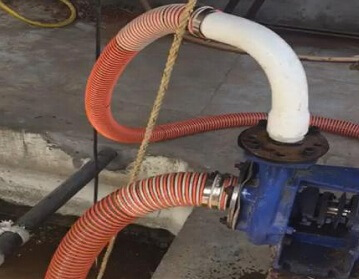

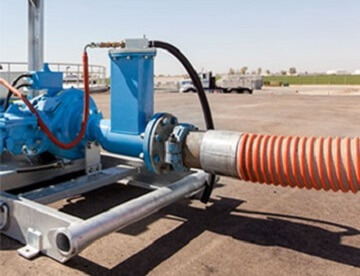

DUTRON GROUP is India’s first company to manufacture high-pressure water suction and delivery hose. This superior hose are used for heavy duty applications where high pressure and vacuum required. Constructed with Flexible PVC, Rigid PVC Helix, Synthetic Braiding, Smooth Bore and Corrugated O.D. which makes it lighter, more flexible, easier to handle and does not allow elongation during application.
Composition: Flexible PVC, Rigid PVC, Synthetic Braiding, Smooth Bore and Corrugated OD.
| Normal Size | Diameter | Bending Radius | Pressure (at 30°C) | Vacuum Rating | Standard Lengths | |||
|---|---|---|---|---|---|---|---|---|
| Inches | mm | ID mm | OD mm | mm | Working kg/cm² | Bursting kg/cm² | at 30°C(hg) | mtrs. |
| 1½ | 40 | 38.1 | 49 | 65 | 7 | 20 | 28 | 30 |
| 2 | 50 | 50.8 | 64 | 100 | 7 | 20 | 28 | 30 |
| 2½ | 65 | 63.5 | 76 | 125 | 7 | 20 | 28 | 30 |
| 3 | 75 | 76.2 | 91 | 150 | 6 | 18 | 28 | 30 |
| 4 | 100 | 101.6 | 118 | 200 | 5 | 16 | 25 | 15/18/30 |
| 5 | 125 | 127.0 | 151 | 230 | 5 | 15 | 25 | 15/18 |
| 6 | 150 | 152.4 | 182 | 330 | 5 | 15 | 25 | 15/18 |
| 8 | 200 | 203.2 | 236 | 450 | 4 | 12 | 20 | 6 |
